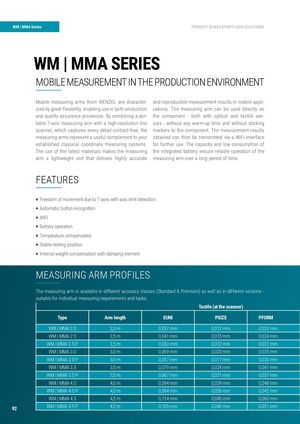

WM | MMA Series PRODUCT RANGE SHOPFLOOR SOLUTIONS WM | MMA Series

WM | MMA SERIES YOUR ADVANTAGES MOBILE MEASUREMENT IN THE PRODUCTION ENVIRONMENT AT A GLANCE P High fl exibility

Mobile measuring arms from WENZEL are character- and reproducible measurement results in mobile appli-

ized by great flexibility, enabling use in both productioncations. The measuring arm can be used directly on7 axes for freedom of movement | Can be used with
and quality assurance processes. By combining a por-the component - both with optical and tactile sen-tactile and optical sensors | Axis limit detection
table 7-axis measuring arm with a high-resolution linesors - without any warm-up time and without stickingMobile use

P scanner, which captures every detail contact-free, the markers to the component. The measurement results Suitable for industrial use | Portable light weight | measuring arms represent a useful complement to your obtained can then be transmitted via a WiFi interface

Integrated battery & WiFi established classical coordinate measuring systems. for further use. The capacity and low consumption of

The use of the latest materials makes the measuringthe integrated battery ensure reliable operation of theP High process effi ciency
arm a lightweight unit that delivers highly accuratemeasuring arm over a long period of time.No marker sticking | No warm-up time |

Automatic button recognition FEATURES Accurate and reproducible measurement results P Temperature compensation | Stable rest position |

Internal weight compensation with damping element P Freedom of movement due to 7 axes with axis limit detection Automatic button recognition P Data evaluation and security P WiFi Integrated WiFi interface | P Evaluation with QM I Quartis Mobile P Battery operation P Temperature compensated P Stable resting position P Internal weight compensation with damping element

MEASURING ARM PROFILES

The measuring arm is available in different accuracy classes (Standard & Premium) as well as in different versions - suitable for individual measuring requirements and tasks.

Tactile(at the scanner)
TypeArm lengthEUNIPSIZEPFORM
WMMMA 2.02,0 m0,037 mm0,012 mm0,020 mm
WMMMA 2.52,5 m0,041 mm0,015 mm0,024 mm
WMMMA 2.5 P2,5 m0,033 mm0,012 mm0,022 mm
WMMMA 3.03,0 m0,069 mm0,020 mm0,035 mm
WMMMA 3.0 P3,0 m0,057 mm0,017 mm0,030 mm
WMMMA 3.53,5 m0,079 mm0,024 mm0,041 mm
WMMMA 3.5 P3,5 m0,067 mm0,021 mm0,037 mm
WMMMA 4.04,0 m0,094 mm0,029 mm0,048 mm
WMMMA 4.0 P4,0 m0,084 mm0,026 mm0,042 mm
WMMMA 4.54,5 m0,114 mm0,045 mm0,060 mm
WMMMA 4.5 P4,5 m0,105 mm0,040 mm0,051 mm
WM | MLS 100PWM | MLS 100PWM | MLS 200WM | MLS 200WM | MLS 100WM | MLS 100
LDIA scanningLDIA scanningLDIA scanningLDIA scanningLDIA scanningLDIA scanning

repeatability WM | LS70

WM | MMA 3.573,5 m0,054 mm0,062 mm0,069 mm
WM | MMA 4.074,0 m0,069 mm0,074 mm0,081 mm
