Sensors Change Racks PRODUCT RANGE SHOPFLOOR SOLUTIONS PRODUCT RANGE SHOPFLOOR SOLUTIONS
SENSORS AND CHANGE RACKS
MOUNTING HEADS, PROBES AND SCANNERS
Combined with a variety of innovative sensors, the or indexable mounting heads. With the corresponding
WENZEL SF series machines are applicable fl exibly eventouch-trigger, scanning and optical measuring systems,
for the most different of applications. From smallestour product series achieve meaningful results for a
injection moulded parts up to large sheet metal punchingwide variety of applications. The compatible automatic
tools - our product series meet your requirements! Theychanging racks turn the measuring machines into
can be equipped with manual, motorized, infi nitely variablehomogeneous and versatile measuring systems.
PH10T PLUS / PH10M PLUS /PH20REVO-2
PH10M iQ PLUSThe 5-axis PH20 and LH are anThe revolutionary 5-axis probe system
Automatically, indexable probe head,effi cient solution for measuringREVO™ coupled with WM | Quartis
Fast probe replacement (auto joint)3D and prismatic components. Theprovides an extremely fast high
with the corresponding change‘Head Touch’ function takesscanning speed solution with a high
systems.measurement points very quicklydegree of measurement fl exibility, and

and reduces cycle times. thus an extremely high throughput.

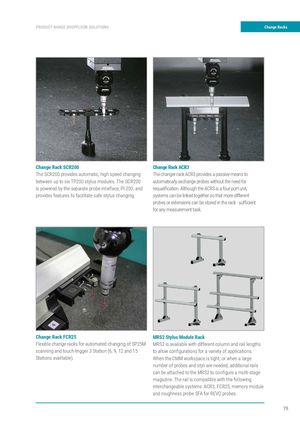

Change Rack SCR200Change Rack ACR3
The SCR200 provides automatic, high speed changingThe changer rack ACR3 provides a passive means to
between up to six TP200 stylus modules. The SCR200automatically exchange probes without the need for
is powered by the separate probe interface, PI 200, andrequalifi cation. Although the ACR3 is a four port unit,
provides features to facilitate safe stylus changing.systems can be linked together so that more different

probes or extensions can be stored in the rack - suffi cient for any measurement task.

Change Rack FCR25MRS2 Stylus Module Rack
Flexible change racks for automated changing of SP25MMRS2 is available with different column and rail lengths
scanning and touch-trigger 3 Station (6, 9, 12 and 15to allow confi gurations for a variety of applications.
Stations availlable).When the CMM workspace is tight, or when a large
TP20TP200SP25M
Touch trigger probe. ExtremelyCompact, modulechanging touchThe most compact and versatilenumber of probes and styli are needed, additional rails
robust and fl exible touch triggertrigger probe particularly suitableprobe system for scanning on acan be attached to the MRS2 to confi gure a multi-stage
probe with stylus module.for measuring tasks with tightglobal scale.magazine. The rail is compatible with the following

dimensional tolerances for 3D interchangeable systems: ACR3, FCR25, memory module free-form surfaces with longer styli. and roughness probe SFA for REVO probes.
