exaCTSensors M PRODUCT RANGE CMM PRODUCT RANGE CMM Changer RacksexaCT M

SENSORS AND CHANGE RACKS FOR HORIZONTAL ARM MACHINES The R series can be equipped with manual, motorized, infi nitely variable or indexable probes and swivel heads. These can be combined with an extensive range of touch trigger, scanning and optical measuring systems.

PH10T PLUS / PH10M PLUS /PHS2 servo positioning headSP600
PH10M iQ PLUSCan be swiveled continuously.A universal robust probe with

Automatically, indexable probe head, Minimum probe calibration efforts. scanning functions. Ideal for Fast probe replacement (auto joint) Extensions of up to 750 mm scanning forms and fi ne surface

with the corresponding change possible. details. systems.

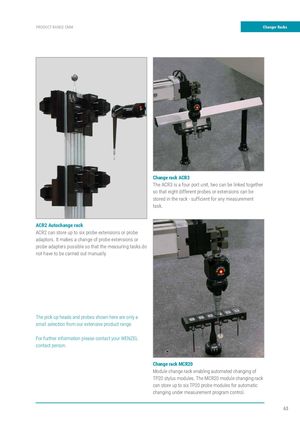

ACR2 Autochange rack ACR2 can store up to six probe extensions or probe adaptors. It makes a change of probe extensions or probe adapters possible so that the measuring tasks do not have to be carried out manually.

Change rack ACR3 The ACR3 is a four port unit, two can be linked together so that eight different probes or extensions can be stored in the rack - suffi cient for any measurement task.

The pick-up heads and probes shown here are only a small selection from our extensive product range. For further information please contact your WENZEL contact person.

TP20Universal mounting headScribing tool
Touch trigger probe. ExtremelyThe mounting head allows theThe manual mode of operation ofChange rack MCR20
robust and fl exible touch triggermounting of probe systems andthe R series allows the scribing ofModule change rack enabling automated changing of
probe with stylus change modules.markingt tools for all axial directionsmodels in metalworking, mouldTP20 stylus modules. The MCR20 module changing rack
in a fast, secure and user-friendly way.making, tooling, tooling, etc.can store up to six TP20 probe modules for automatic

and design area. changing under measurement program control.
