exaCTRS-Features M RS-FeaturesexaCT M PRODUCT RANGE CMM PRODUCT RANGE CMM

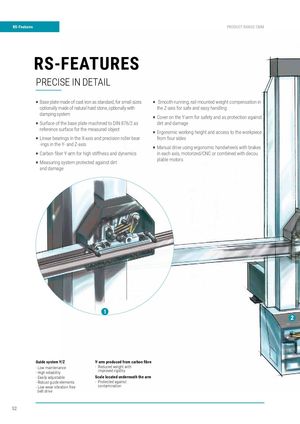

RS-FEATURES
PRECISE IN DETAIL
P Base plate made of cast iron as standard, for small sizesP Smooth-running, rail-mounted weight compensation in
optionally made of natural hard stone, optionally withthe Z-axis for safe and easy handling
damping system
P Cover on the Y-arm for safety and as protection against
P Surface of the base plate machined to DIN 876/2 asdirt and damage
reference surface for the measured object
P Ergonomic working height and access to the workpiece
P Linear bearings in the X-axis and precision roller bearfrom four sides
-ings in the Y- and Z-axis
P Manual drive using ergonomic handwheels with brakes
P Carbon fi ber Y-arm for high stiffness and dynamicsin each axis, motorized/CNC or combined with decou

plable motors P Measuring system protected against dirt and damage

Guide system XPneumatically
- Developed using highdisengageable drives
technology FEM methods- Eliminate undesired heat
- Distortion-stiff X-axissources
- Enclosed guideway
protections from dirt andGekapselte Linearführungen
dust.- Hohe Führungsgenauigkeit
- Geringe Schmutzempfi nd-
Drive unitlichkeit
- „Toothed drive belt drive,- Hohe Lebensdauer
low-maintenance- Geringer Wartungsaufwand
- Ergonomic for manual
operationController und PC
- Stress-free operation- Kompakte Bauweise

durch integriertes System (optional)

Guide system Y/ZY-arm produced from carbon fi bre
- Low maintenance- Reduced weight with
- High reliabilityimproved rigidity
- Easily adjustableScale located underneath the arm
- Robust guide elements- Protected against
- Low-wear vibration freecontamination

belt drive
