RS SeriesPRODUCT RANGE CMM

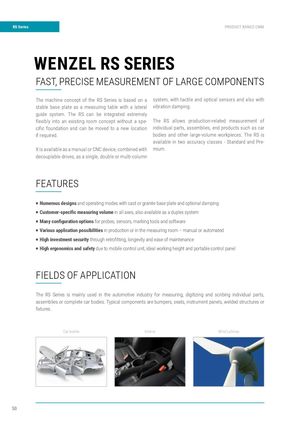

WENZEL RS SERIES
FAST, PRECISE MEASUREMENT OF LARGE COMPONENTS
The machine concept of the RS Series is based on asystem, with tactile and optical sensors and also with
stable base plate as a measuring table with a lateralvibration damping.
guide system. The RS can be integrated extremely
flexibly into an existing room concept without a spe-The RS allows production-related measurement of
cific foundation and can be moved to a new locationindividual parts, assemblies, end products such as car
bodies and other large-volume workpieces. The RS is
if required.
available in two accuracy classes - Standard and Pre-
It is available as a manual or CNC device, combined withmium.

decouplable drives, as a single, double or multi-column FEATURES P Numerous designs and operating modes with cast or granite base plate and optional damping P Customer-specifi c measuring volume in all axes, also available as a duplex system

P Many confi guration options for probes, sensors, marking tools and software P Various application possibilities in production or in the measuring room – manual or automated P High investment security through retrofi tting, longevity and ease of maintenance P High ergonomics and safety due to mobile control unit, ideal working height and portable control panel

FIELDS OF APPLICATION

The RS Series is mainly used in the automotive industry for measuring, digitizing and scribing individual parts, assemblies or complete car bodies. Typical components are bumpers, seats, instrument panels, welded structures or fi xtures.

Car bodies Interior Wind turbines

RS Series

Many application possibilities Customer-specifi c measuring volume

Many confi guration options Numerous designs High ergonomics and safety

YOUR ADVANTAGES

AT A GLANCE

P Highly maintenance friendly

Original manufacturer service | Optimum accessibility | Low downtimes

P Long service life

RS (Single unit) RSD (Duplex system) Machine design with wear-resistant and optimized components | Investment protection through upgradeability and compatibility

MACHINE PROFILE P High fl exibility

Simple and fl exible integration into existing room and building concepts | adaptive to room, building and process changes

Measuring volume X-axis Custom Diverse fi elds of application

P Measuring volume Y-axis up to 2100; Duplex up to 4000 mm Ergonomic working height makes it also suitable for small parts | Measuring during production Measuring volume Z-axis up to 3000 mm

P You have the choice

Measurement uncertaintyE , from 15+L/45 ≤ 50 (µm)*Base plate available in cast iron or granite | Optionally
L MPEwith active vibration damping | Different operating

*Depending on machine confi guration (Premium, Standard) modes according to current technical data sheets
