WENZEL

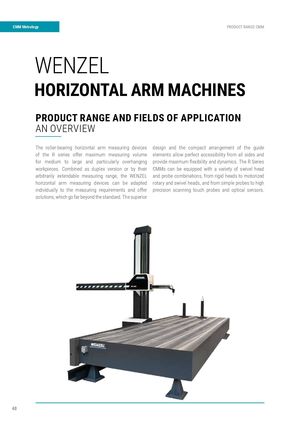

HORIZONTAL ARM MACHINES
PRODUCT RANGE AND FIELDS OF APPLICATION
AN OVERVIEW
The roller-bearing horizontal arm measuring devicesdesign and the compact arrangement of the guide
of the R series offer maximum measuring volume elements allow perfect accessibility from all sides and
for medium to large and particularly overhanging provide maximum fl exibility and dynamics. The R Series
workpieces. Combined as duplex version or by theirCMMs can be equipped with a variety of swivel head
arbitrarily extendable measuring range, the WENZEL and probe combinations, from rigid heads to motorized
horizontal arm measuring devices can be adapted rotary and swivel heads, and from simple probes to high
individually to the measuring requirements and offerprecision scanning touch probes and optical sensors.

solutions, which go far beyond the standard. The superior

PRODUCT RANGE CMM PRODUCT RANGE CMM CMM Product RangeexaCT M

VARIANTS AND DESIGNS

SUITABLE FOR YOUR MEASURING TASKS

P The universally applicable RS (roller-bearing side) stand-alone measuring device with guide elements attached to the base plate at the side can be easily integrated into existing room concepts. P Defi ning characteristics of the RA (roller bearing on base plate) / RAF (roller bearing on guide beam) series are the fl oor-level base plates on which the guidance systems are mounted. Due to this design, the coordinate measur- ing machine can be easily equipped with heavy components up to complete vehicles. P The RAX (roller bearing on base plate, XL measuring range) with its far above-average measuring range was specially developed for the needs of the automotive industry. P The RUF underfl oor measuring machine is the ideal supplement to the measuring centers when work pieces are also measured from below. To extend the Y measuring range, all machines can be supplied as duplex version.

RS (Simplex) RSD (Duplex version) RA (Simplex, on fl oor) RAD (Duplex version, on fl oor)

RAF (Simplex, on fl oor) RAFD (Duplex version, on fl oor) RAD RUF (Duplex version,

with underfl oor measuring machine)

RA (Simplex, flushwithfloor) RAD (Duplex version, flushwithfloor) RAF (Simplex, flushwithfloor) RAFD (Duplex version, flushwithfloor)

RAX (Simplex, on fl oor) RAXD (Duplex version, on fl oor) RAXF (Simplex, on fl oor) RAXFD (Duplex version, on fl oor)

RAX (Simplex, flushwithfloor) RAXD (Duplex version, flushwithfloor) RAXF (Simplex, flushwithfloor) RAXFD (Duplex version, flushwithfloor)
