Sensors			PRODUCT RANGE CMM

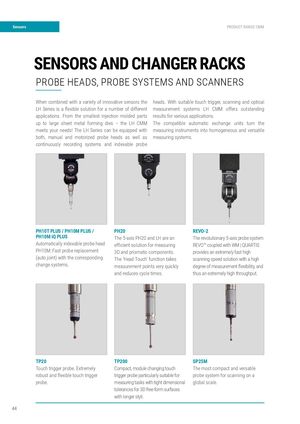

SENSORS AND CHANGER RACKS
PROBE HEADS, PROBE SYSTEMS AND SCANNERS
When combined with a variety of innovative sensors the		heads. With suitable touch trigger, scanning and optical
LH Series is a ﬂ exible solution for a number of different		measurement systems LH CMM offers outstanding
applications. From the smallest injection molded parts		results for various applications.
up to large sheet metal forming dies – the LH CMM		The compatible automatic exchange units turn the
meets your needs! The LH Series can be equipped with		measuring instruments into homogeneous and versatile
both, manual and motorized probe heads as well as		measuring systems.
continuously recording systems and indexable probe
PH10T PLUS / PH10M PLUS /	PH20		REVO-2
PH10M iQ PLUS	The 5-axis PH20 and LH are an		The revolutionary 5-axis probe system
Automatically indexable probe head	efﬁ cient solution for measuring		REVO™ coupled with WM \| QUARTIS
PH10M: Fast probe replacement	3D and prismatic components.		provides an extremely fast high
(auto joint) with the corresponding	The ‘Head Touch’ function takes		scanning speed solution with a high
change systems.	measurement points very quickly		degree of measurement ﬂ exibility, and

and reduces cycle times. thus an extremely high throughput.

PRODUCT RANGE CMM Changer Racks

Changer Rack SCR200	Changer Rack ACR3
With the SCR200 change magazine, up to six	The ACR3 probe changing system allows automatic probe
TP200 stylus modules can be changed quickly and	change without the need for recalibration. Although the
automatically. The SCR200 is controlled by a separate	ACR3 is a unit with four memory locations, several systems
interface (PI 200) and has collision protection against	can be connected to each other in such a way that further
mechanical damage.	different measuring probes and probe extensions can be

accommodated in it.

			Changer Rack FCR25	MRS2 modular rack system
			Flexible changing system for automatic changing of	MRS2 is available with different column and rail lengths
			SP25M scanning and probe modules with 3 stations (6,	to allow conﬁ gurations for a variety of applications.
			9, 12 and 15 stations possible).	When the CMM workspace is tight, or when a large
TP20	TP200	SP25M
Touch trigger probe. Extremely	Compact, module changing touch	The most compact and versatile		number of probes and styli are needed, additional rails
robust and ﬂ exible touch trigger	trigger probe particularly suitable for	probe system for scanning on a		can be attached to the MRS2 to conﬁ gure a multi-stage
probe.	measuring tasks with tight dimensional	global scale.		magazine. The rail is compatible with the following

tolerances for 3D free-form surfaces interchangeable systems: ACR3, FCR25, memory module with longer styli. and roughness probe SFA for REVO probes.
