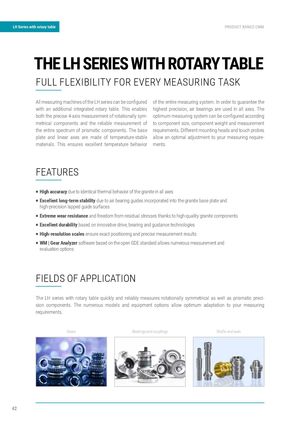

LH Series with rotary tablePRODUCT RANGE CMM
THE LH SERIES WITH ROTARY TABLE
FULL FLEXIBILITY FOR EVERY MEASURING TASK
All measuring machines of the LH series can be confi guredof the entire measuring system. In order to guarantee the
with an additional integrated rotary table. This enableshighest precision, air bearings are used in all axes. The
both the precise 4-axis measurement of rotationally sym-optimum measuring system can be confi gured according
metrical components and the reliable measurement ofto component size, component weight and measurement
the entire spectrum of prismatic components. The baserequirements. Different mounting heads and touch probes
plate and linear axes are made of temperature-stableallow an optimal adjustment to your measuring require-
materials. This ensures excellent temperature behaviorments.

FEATURES P High accuracy due to identical thermal behavior of the granite in all axes P Excellent long-term stability due to air bearing guides incorporated into the granite base plate and high-precision lapped guide surfaces

P Extreme wear resistance and freedom from residual stresses thanks to high-quality granite components P Excellent durability based on innovative drive, bearing and guidance technologies P High-resolution scales ensure exact positioning and precise measurement results P WM | Gear Analyzer software based on the open GDE standard allows numerous measurement and evaluation options

FIELDS OF APPLICATION

The LH series with rotary table quickly and reliably measures rotationally symmetrical as well as prismatic precision components. The numerous models and equipment options allow optimum adaptation to your measuring requirements.

Gears Bearings and couplings Shafts and axes

LH Series with rotary table

YOUR ADVANTAGES AT A GLANCE

P High mechanical precision P High fl exibility

Granite base | Handcrafted | Precise air bearings Measurement of rotationally symmetrical as well as in the linear axes prismatic components with just one system | Numerous sizes and confi gurations

P Low operating costs

Low air consumption | Reliable and inexpensive P High reliability spare parts High-quality components | Many years of development experience | Renishaw sensor systems

P Impressive speeds

4 axes for ultimate speed and precision | Fully automatic probe changing systems
