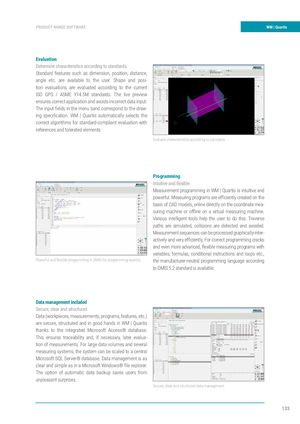

WM | Quartis supports manual and CNC measuringEvaluation
machines with tactile (touching) and optical (non-con-Determine characteristics according to standards
tact) sensors and is therefore predestined for automatedStandard features such as dimension, position, distance,
multi-sensor applications. Scanning with high pointangle etc. are available to the user. Shape and posi-
density allows the acquisition and evaluation of surfacetion evaluations are evaluated according to the current
shape tolerances as well as the color-coded representa-ISO GPS / ASME Y14.5M standards. The live preview
tion of component deviations.ensures correct application and avoids incorrect data input.

The input fi elds in the menu band correspond to the draw- ing specifi cation. WM | Quartis automatically selects the correct algorithms for standard-compliant evaluation with references and tolerated elements.

Evaluate characteristics according to standards

Profi les can be captured and evaluated with one image

Detection of surface shape with optical sensor and color-coded display Non-contact measurement with optical sensors of component deviations

Powerful and fl exible programming in DMIS for programming experts

Programming Intuitive and fl exible Measurement programming in WM | Quartis is intuitive and powerful. Measuring programs are effi ciently created on the basis of CAD models, online directly on the coordinate measuring machine or offl ine on a virtual measuring machine. Various intelligent tools help the user to do this. Traverse paths are simulated, collisions are detected and avoided. Measurement sequences can be processed graphically-interactively and very effi ciently. For correct programming cracks and even more advanced, fl exible measuring programs with variables, formulas, conditional instructions and loops etc., the manufacturer-neutral programming language according to DMIS 5.2 standard is available.

Renishaw REVO and PH20 5-axisData management included
probes increase measurementSecure, clear and structured
throughput with very high scanningData (workpieces, measurements, programs, features, etc.)
speeds and point rates. Steplessare secure, structured and in good hands in WM | Quartis
rotation and swivel angles allowthanks to the integrated Microsoft Access® database.
time-saving, through optimum align-This ensures traceability and, if necessary, later evalua-
ment of the probe to the component.tion of measurements. For large data volumes and several
Measurement with the rotary axesmeasuring systems, the system can be scaled to a central
leads to high system accuracy due toMicrosoft SQL Server® database. Data management is as
minimal traverse paths of the mea-clear and simple as in a Microsoft Windows® fi le explorer.
suring device. In addition, the REVOThe option of automatic data backup saves users from
system allows the measurement ofunpleasant surprises.

roughness. Secure, clear and structured data management 5-axis probes such as PH20 signifi cantly increase measurement throughput
