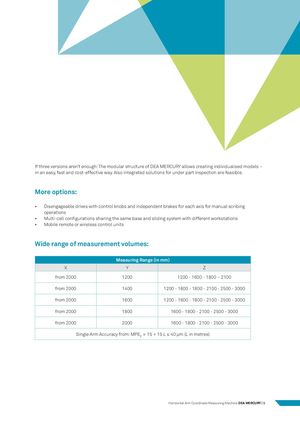

If three versions aren’t enough: The modular structure of DEA MERCURY allows creating individualised models – in an easy, fast and cost-effective way. Also integrated solutions for under part inspection are feasible.

More options:

  • Disengageable drives with control knobs and independent brakes for each axis for manual scribing operations
  • Multi-cell configurations sharing the same base and sliding system with different workstations
  • Mobile remote or wireless control units

Wide range of measurement volumes:

XMeasuring Ran Yge (in mm) Z
from 200012001200 - 1600 - 1800 – 2100
from 200014001200 - 1600 - 1800 - 2100 - 2500 - 3000
from 200016001200 - 1600 - 1800 - 2100 - 2500 - 3000
from 200018001600 - 1800 - 2100 - 2500 - 3000
from 200020001600 - 1800 - 2100 - 2500 - 3000

Single Arm Accuracy from: MPE = 15 + 15 L ≤ 40 µm (L in metres) E
