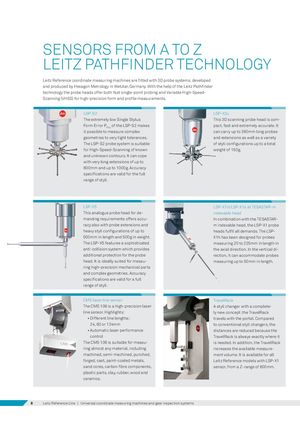

sensoRs fRom a to z

Leitz patHfinDeR tecHnoLoGY

Leitz Reference coordinate measuring machines are fitted with 3D probe systems, developed and produced by Hexagon metrology in Wetzlar, Germany. With the help of the Leitz pathfinder technology the probe heads offer both fast single-point probing and Variable High-speedscanning (VHss) for high-precision form and profile measurements.

Lsp-s2 Lsp-X3c the extremely low single stylus this 3D scanning probe head is com-

form error pof the Lsp-s2 makespact, fast and extremely accurate. it
ftU
it possible to measure complexcan carry up to 360mm long probes
geometries to very tight tolerances.and extensions as well as a variety
the Lsp-s2 probe system is suitableof styli configurations up to a total
for High-speed-scanning of knownweight of 150g.

and unknown contours. it can cope with very long extensions of up to 800mm and up to 1000g. accuracy specifications are valid for the full

range of styli.

Lsp-X5Lsp-X1h/Lsp-X1s at tesastaR-m
this analogue probe head for de-indexable head
manding requirements offers accu-in combination with the tesastaR-
racy also with probe extensions andm indexable head, the Lsp-X1 probe
heavy styli configurations of up toheads fulfil all demands. the Lsp-
500mm in length and 500g in weight.X1h has been designed for probes
the Lsp-X5 features a sophisticatedmeasuring 20 to 225mm in length in
anti-collision system which providesthe axial direction. in the vertical di-
additional protection for the proberection, it can accommodate probes
head. it is ideally suited for measu-measuring up to 50mm in length.
ring high-precision mechanical parts
and complex geometries. accuracy
specifications are valid for a full
range of styli.
cms laser line sensortravelRack
the cms 106 is a high-precision lasera styli changer with a complete-
line sensor. Highlights:ly new concept: the travelRack
  • Different line lengths: travels with the portal. compared 24, 60 or 124mm to conventional styli changers, the
  • Automatic laser performance distances are reduced because the control travelRack is always exactly where it
the cms 106 is suitable for measu-is needed. in addition, the travelRack
ring almost any material, includingincreases the available measure-
machined, semi-machined, punched,ment volume. it is available for all
forged, cast, paint-coated metals,Leitz Reference models with Lsp-X1
sand cores, carbon fibre components,sensor, from a z-range of 600mm.

plastic parts, clay, rubber, wood and ceramics.
