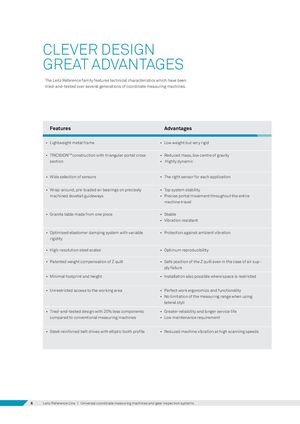

cLeVeR DesiGn

GReat aDVantaGes

the Leitz Reference family features technical characteristics which have been tried-and-tested over several generations of coordinate measuring machines.

FeaturesAdvantages
• Lightweight metal frame• Low weight but very rigid
• tRicisiontmconstruction with triangular portal cross section• Reduced mass, low centre of gravity • Highly dynamic
• Wide selection of sensors• the right sensor for each application
• Wrap-around, pre-loaded air bearings on precisely machined dovetail guideways• top system stability • precise portal movement throughout the entire machine travel
• Granite table made from one piece• stable • Vibration resistant
• optimised elastomer damping system with variable rigidity• protection against ambient vibration
• High-resolution steel scales• optimum reproducibility
• patented weight compensation of z quill• safe position of the z quill even in the case of air sup- ply failure
• minimal footprint and height• installation also possible where space is restricted
• Unrestricted access to the working area• perfect work ergonomics and functionality • no limitation of the measuring range when using lateral styli
• tried-and-tested design with 20% less components compared to conventional measuring machines• Greater reliability and longer service life • Low maintenance requirement
• steel-reinforced belt drives with elliptic tooth profile• Reduced machine vibration at high scanning speeds
