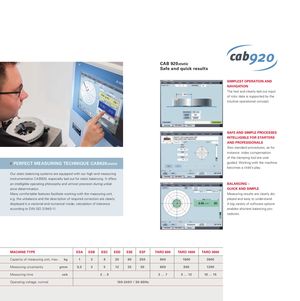

caB 920static
Safe and quick results
SimPleSt oPeration and navigation The fast and clearly laid out input of rotor data is supported by the intuitive operational concept.
Safe and SimPle ProceSSeS intelligiBle for StarterS and ProfeSSionalS Also standard procedures, as for instance: index compensation of the clamping tool are user
| ▶ Perfect meaSuring technique caB920static | guided. Working with the machine |
| becomes a child’s play. | |
| Our static balancing systems are equipped with our high-end measuring | |
| instrumentation CAB920, especially laid out for static balancing. It offers | |
| an intelligible operating philosophy and utmost precision during unbal- | Balancing – |
| ance determination. | quick and SimPle |
| Many comfortable features facilitate working with the measuring unit, | Measuring results are clearly dis- |
| e.g. the unbalance and the description of required correction are clearly | played and easy to understand. |
| displayed in a vectorial and numerical mode; calculation of tolerance | A big variety of software options |
| according to DIN ISO 21940-11. | enables shortest balancing pro- |
cedures.
| machine tyPe | eSa | eSB | eSc | eSd | eSe | eSf | taro 600 | taro 1600 | taro 3600 | |
| Capacity of measuring unit, max. | kg | 1 | 3 | 6 | 20 | 60 | 200 | 600 | 1600 | 3600 |
| Measuring uncertainty | gmm | 0,5 | 3 | 5 | 12 | 25 | 50 | 600 | 800 | 1200 |
| Measuring time | sek | 2 ... 5 | 3 … 7 | 5 … 12 | 10 ... 15 | |||||
| Operating voltage, normal | 100 | -240v / | 50-60hz |
