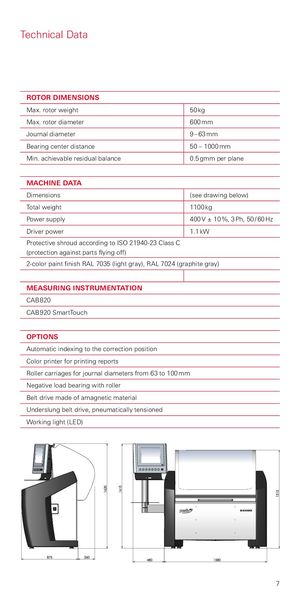

Technical Data
ROTOR DIMENSIONS
| Max. rotor weight | 50 kg |
| Max. rotor diameter | 600 mm |
| Journal diameter | 9 – 63 mm |
| Bearing center distance | 50 – 1000 mm |
| Min. achievable residual balance | 0.5 gmm per plane |
MACHINE DATA
| Dimensions | (see drawing below) |
| Total weight | 1100 kg |
| Power supply | 400 V ± 10 %, 3 Ph, 50 / 60 Hz |
| Driver power | 1.1 kW |
Protective shroud according to ISO 21940-23 Class C (protection against parts flying off) 2-color paint finish RAL 7035 (light gray), RAL 7024 (graphite gray)
MEASURING INSTRUMENTATION CAB 820 CAB 920 SmartTouch
OPTIONS Automatic indexing to the correction position Color printer for printing reports Roller carriages for journal diameters from 63 to 100 mm Negative load bearing with roller Belt drive made of amagnetic material Underslung belt drive, pneumatically tensioned Working light (LED)
