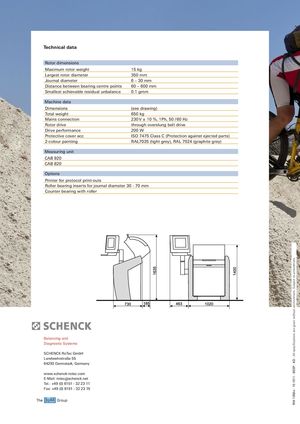

Technical data
| Rotor dimensions | |
| Maximum rotor weight | 15 kg |
| Largest rotor diameter | 350 mm |
| Journal diameter | 6–30 mm |
| Distance between bearing centre points | 60–600 mm |
| Smallest achievable residual unbalance | 0.1 gmm |
| Machine data | |
| Dimensions | (see drawing) |
| Total weight | 650 kg |
| Mains connection | 230V ± 10 %, 1Ph, 50 / 60 Hz |
| Rotor drive | through overslung belt drive |
| Drive performance | 200 W |
| Protective cover acc | ISO 7475 Class C (Protection against ejected parts) |
| 2-colour painting | RAL7035 (light grey), RAL 7024 (graphite grey) |
| Measuring unit | |
| CAB 920 | |
| CAB 820 | |
| Options | |
| Printer for protocol print-outs | |
| Roller bearing inserts for journal diameter | 30-70 mm |
| Counter bearing with roller |
Balancing and Diagnostic Systems SCHENCK RoTec GmbH Landwehrstraße 55 64293 Darmstadt, Germany www.schenck-rotec.com E-Mail: rotec@schenck.net Tel.: +49 (0) 6151 - 32 23 11 Fax: +49 (0) 6151 - 32 23 15
