Балансирововчные машины MPM серии VMS.TS100 - страница 2

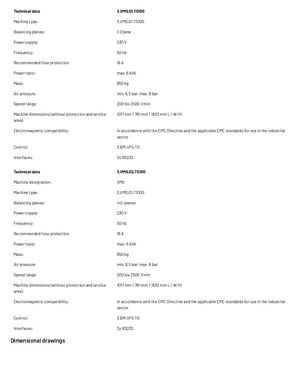

Technical data 3.VMS.01.TS100 Machine type: 3.VMS.01.TS100 Balancing planes: 1-Ebene Power supply: 230 V Frequency: 50 Hz Recommended fuse protection: 16 A Power input: max. 6 kVA Mass: 850 kg Air pressure: min. 6,5 bar; max. 8 bar Speed range: 200 bis 2500 1/min Machine dimensions (without protection and service 1017 mm / 781 mm / 1833 mm L / W /H area): Electromagnetic compatibility: In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector Control: 3.BM.VFG.TS Interfaces: 2x RS232 Technical data 3.VMS.02.TS100 Machine designation: VMS Machine type: 3.VMS.01.TS100 Balancing planes: 1+2-planes Power supply: 230 V Frequency: 50 Hz Recommended fuse protection: 16 A Power input: max. 6 kVA Mass: 850 kg Air pressure: min. 6,5 bar; max. 8 bar Speed range: 200 bis 2500 1/min Machine dimensions (without protection and service 1017 mm / 781 mm / 1833 mm L / W /H area): Electromagnetic compatibility: In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector Control: 3.BM.VFG.TS Interfaces: 2x RS232 Dimensional drawings
